JK Fenner Couplings

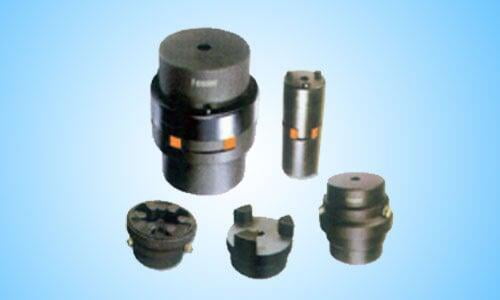

Essex Jaw Coupling
General purpose, low cost, flexible jaw coupling
Flexible Rubber inserts caters for incidental Angular, Parallel & Axial misalignment
Standard(8 sizes), External Spider(6 sizes) & Cushion type (6 sizes).
All versions available in spacer type also, spacer size depending on distance between shaft ends (DBSE).
Torque : 20 to 2139 Nm
Bore Range : 15 – 90 mm (Through Bore)

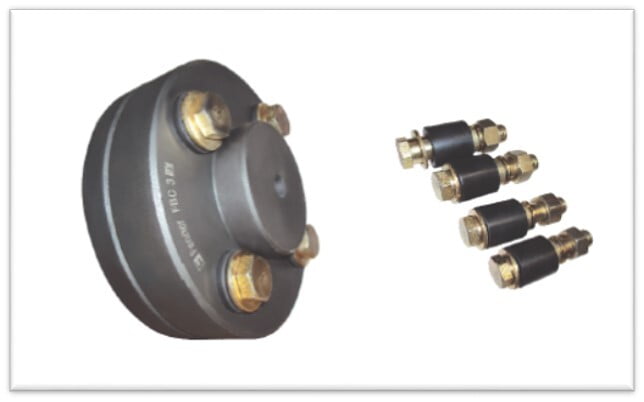

Pin Bush Coupling
Simple & Compact
High Torque, High Speed
Flanges in pilot or finished bore
Lubrication not required
Range of 26 sizes (BC-1 TO NBC-17)
Torque Range : 77 to 1,97,600 Nm
Bore range : 12.7 to 350 mm
Resilient Coupling
High power rating more than Gear Coupling & High Flexibility of Tyre Coupling
Range 0.45 kW - 1307 kW at 100 rpm
Vertical & Horizontal Splits

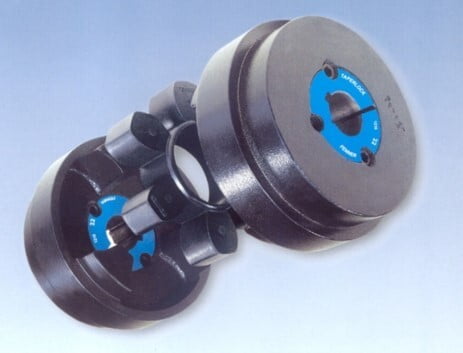

HRC Flexible Jaw Coupling
A product developed by Fenner (Hainsworth Research Centre, UK)
Higher power transmission & misalignment capacity
Available in Taper Lock / Through Bore versions
General Purpose value for money coupling
Design optimized to balance power capacities & appropriate shaft diameters utilizing Taper Lock Bush fixing
Nitrile Rubber elastomeric inserts to withstand temperatures from -40 Deg to +100 Deg C
Range of 8 sizes ( HRC-70 to HRC-280 )
Torque: 31.5 to 3150 Nm
Bore : 9 to 90 mm (Taper Lock)
: 10 to 115 mm (Through Bore)
Gear Coupling
High Mechanical Flexibility - Curved Tooth profile
High compensation of Angular, Parallel & Axial misalignment
High power carrying capacity
Wide range to suit variety of applications
Conforming to IS & IPSS Standards
Seal carrier for easy maintenance
Carbon Steel forged / cast hubs with hardened teeth
Range of 19 sizes (FGC-1 to FGC-19 )
Torque : 1100 – 12,00,000 Nm
Bore range : 20 – 600 mm
Tyre Coupling
Highly Elastic, Back Lash Free
Absorbs shocks, dampens vibrations
High Misalignment Capacity
Available with Taper Lock Bushes
Choice of tyres – Standard, Neoprene or Fire Resistant Anti-Static (FRAS)
Inherent Overload Protection
Lubrication Not Required
Range of 17 sizes ( F40 – F250 )
Torque : 21 to 42740 Nm
Bore : 9 to 127 mm (Taper Lock)
: 11 to 190 mm (Through Bore)
