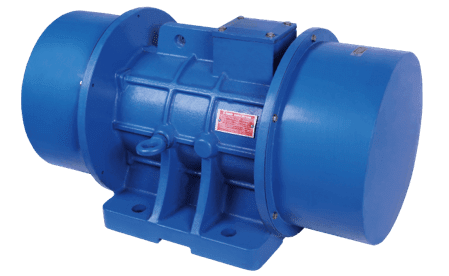

JK Fenner Vibratory Motors
Rugged Constructions for tough environment.
Totally dust proof air cooled design complies with IP55 specification
F-Class winding: Impervious to dust moisture and vibrations.
Vibrations force is adjustable from zero to maximum by adjusting position of unbalance weights provided on both sides of motor shaft
Special Features: Thermal overload protection
Available Range: 0.25 HP to 10 HP in 2 Pole/4 Pole/6 Pole
Features Of Our Vibratory Motors
Vibratory Motor
- Rugged construction to withstand tough environments
- Motor winding is vacuum impregnated
- Completely dustproof air-cooled design to operate in dusty environments. Complies with IP55 specification
- F-Class winding: Impervious to dust, moisture, and vibrations
- Terminal box connector sealed with a layer of resin to prevent damage due to vibrations
- Vibration force adjustable from zero to maximum by fine-tuning the position of unbalance weights provided on both sides of the motor shaft
- Driveshaft made from oversized alloy steel to withstand stress at high speeds
- Body made from high-grade SG Iron material for bigger & Cast Iron for smaller sizes.
- Maintenance-free sealed imported pre-lubricated heavy bearings
- The amplitude of vibration can be controlled
- Noise-free performance
- Thermal overload protection:
- 3 PTC (Positive thermal coefficient) Thermistor 130°C for bigger sizes.
- 3 TOP (Thermal overload protector) bi-metallic switch 145°C for smaller sizes
- Permanent and legible markings for the settings of the unbalance weights
