JK Fenner Pulleys

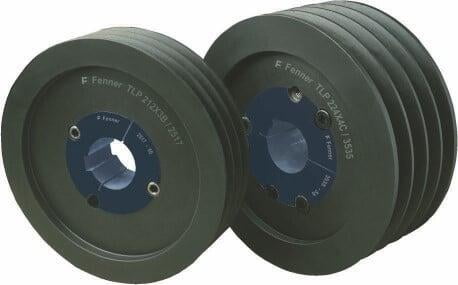

Taper Lock Pulleys
India’s first Standard range of metric pulleys
Dual duty grooves to perfectly match Classical ‘V’ & Space saver Wedge Belts
With Taper Lock Bushes changes in diameter and position of pulleys are easily made
Can cater to drives up to about 250kW at 1440 RPM
Speed ratios up to 1:7
Over 470 standard sizes to cater to a wide range of requirements
Taper Lock Bushes
Easy & quick ‘shrink fit’ of pulleys, couplings etc. on the shafts by using only Allen-key.
Available with finished bore & keyway in both metric & imperial sizes.
Interchangeable between many products such as Pulleys, Couplings, Sprockets etc.
Change of shaft dia. can be accommodated by fixing alternative bore bush.
Accommodates shaft limits of +/- 0.051 mm to 0.127 mm.
Over 400 bush, bore combinations
Benefits
Possible for unskilled labor to achieve shrink-fit for Pulleys, Couplings, Sprockets etc. on to shafts by using only a hexagon wrench.
Convenience in mounting and in dismantling for maintenance and component replacement
Introducing New Product

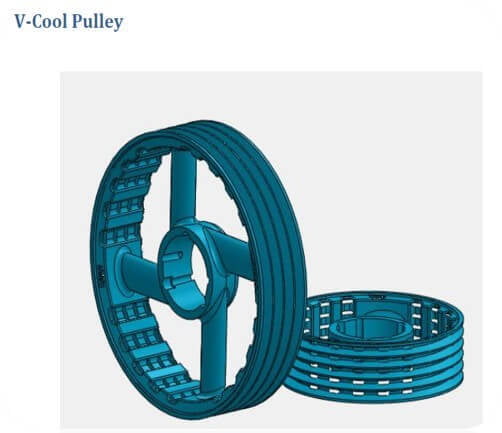

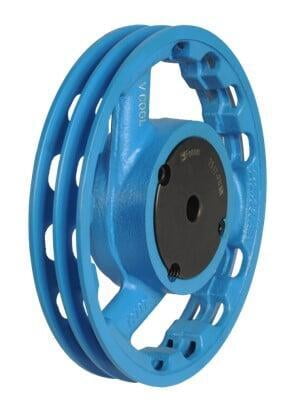

V Cool Pulleys
MATERIAL OF CONSTRUCTION SG500
HIGH TENSILE STRENGTH, HIGH HARDNESS
COOLING GROOVES , LESS ENERGY LOSS DUE TO HEAT
FOREIGN PARTICLES REMOVAL HOLES
EFFICIENCY HIGH
SAVINGS IN POWER
| STANDARD PULLEYS | V COOL PULLEYS |
| As per IS 3142 | As per IS 210 |
| Dual Groove pulleys | Dual Grooves pulley |
| Material of Construction CI FG 200 | Material of Construction CI SG 500/6 |
| Tensile strength 200 N/mm sq, Hardness 170-200 BHN | Tensile strength 500 N/mm sq, Hardness 170-235 BHN |
| Cooling effect is due to gap between belt bottom and pulley groove bottom | Cooling effect is due to gap between belt bottom and pulley groove bottom as well as bottom hole |
| Due to higher hardness abrasion is less | |
| Groove life is better than FG 200 |

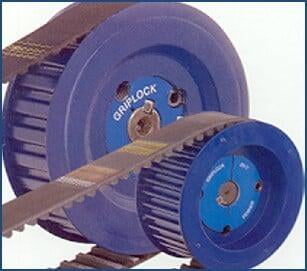

Timing Pulley
Fenner provide pulley in all type of range as per below
TIMING PULLEYS: ‘L’ & ‘H’ PITCH
HTD PULLEYS: ‘5M’, ‘8M’ & ’14M’ PITCH
Poly V Pulley
Poly V Pulleys for Poly V belt drives for Compact and Energy Saving applications. 160 Sizes in PJ,PL,PM are available as Standard in Taper Lock Version.
RANGE :
PH, PJ, PK, PL & PM SECTION PULLEYS
STD RANGE & CUSTOM BUILT
