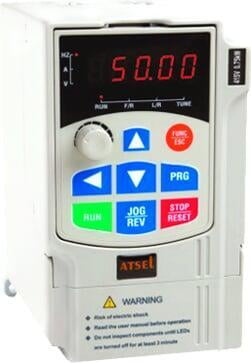

FD100 [VFD, Single & 3 Phase, [FD100]]
| AC Input Voltage Range | Single Phase :220 VAC, 3 Phase: 415 VAC |
| Frequency Range | 50/60Hz |
| Control Mode | 4 Digital Inputs On Power Supply Cards + As Per Flexys Card Selection |
| Frequency Control range | 0.1 ~ 400 Hz |
| Acc. / Dec. time | 0-3600 secs |
| Overload Capacity | G Type - 150% rated current for 1 min. P type - 120% rated current for 1 min |
| Operation Commands | Keypad & External Terminals |
| Protection Features | Over Current, Over Voltage, Under Voltage, Over Heat, Overload, Phase Loss |
| Ingress Protection | IP65 |
| Working Temperature | -10°C to 50°C |
FD200 [VFD,3 Phase, 415 VAC [FD200-3]]
| AC Input Voltage Range | 3 Phase, 415 VAC |
| Frequency Range | 50/60Hz |
| Control Mode | Space Vector SVPWM and Flux Vector Control |
| Frequency Control range | 0.1 ~ 400 Hz |
| Acc. / Dec. time | 0-3600 secs |
| Overload Capacity | G Type - 150% rated current for 1 min. P type - 120% rated current for 1 min |
| Operation Commands | Keypad & External Terminals |
| Protection Features | Over Current, Over Voltage, Under Voltage, Over Heat, Overload, Phase LossOver Voltage, Under Voltage, Over Heat, Overload, Phase Loss |
| Ingress Protection | IP65 |
| Working Temperature | -10°C to 50°C |
Low Cost feature packed AC Drives suitable for simple applications available in FD-2000 Series in 0.37 kW & 0.75 kW models, both Single Phase & Three Phase inputs.
